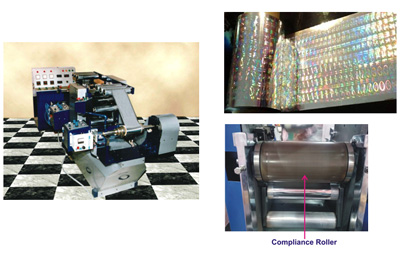

Narrow Web Hard Embossing Machine with 360 Degree Shim Mounting Roller and Single Indian Compliance with Industrial Electric Heating

This equipment is designed for the commercial production of Embossed Film for Security Holograms and allied Products, using PET & Hot Stamping Foils. Due to the highly automated nature of this latest equipment, the end-user can plan and control all the operating variables of the Embossing Process such as temperature, pressure and web speed. This unique feature ensures that optimum results are obtained with minimum wastage of expensive base material ( 3%(three percent) max ).Uniform heating of the Embossing Roller and precise temperature control through an automated Industrial Electric Heating System ensures High Speed of Embossing and extended “Shim Life”.

This Compliance rubber roller Machine suitable for Hard and soft Embossing on Metalized polyester film and Transparent HRI along with Hot stamping foil.

Main specifications :

1. Working Width : 250 mm (Max)
2. Standard Embossing Width : 150 mm- to 250 mm
3. Film Thickness : 10µ to 75 µ
4. Tension Control System :

a) Electromagnetic Powder Brake with Tension controller at unwinding side
b) Electromagnetic Powder Clutch with Tension Controller at Rewind Side.

5. Rewind Roll Dia : 400 mm Max
6. Un-wind Roll Dia : 400 mm Max
7. Temperature Controller (Electric Heating): Digital Temperature Controller with Sensor Control to automatic Heat cut off operation.
8. Centre Roller : 1 No. 360 Degree having OD 103mm with easy shim binding process.
9. Embossing Side Roller : 1 No. Indian Compliance Roller having OD 15.4cm
10. Main Motor : 3 ph Induction Motor (2.2 Kw)
11. Embossing Pressure : Pneumatic will two Cylinder with Individual pressure control arrangement.
12. One Rotation of Centre Roller Printing Size: 323mm length and 250mm width (max)
13. Machine Speed Control : VFD
14. Centre/Shim Mounting Roller: Made of D2 Metal
15. Machine Speed : 45 Meters/ Minute (Max).
16. Pick Power : 6 Kw
17. Embossing Speed Indicator : Included.
18. Embossing Length Indicator : Included.
19. Weight : 2,500 Kg (Approx)
20. Approx. Dimensions : 2 m X 0.9 m X 1.4 m (Approx)
